Six-side Scanning DWS

Dynamic 6-Side DWS (Dimension-Weight-Scanning) + 68-Chute Sorting System is a fully automated, high-precision, and high-efficiency logistics parcel processing solution widely used in e-commerce warehousing, express distribution, cross-border logistics, and other fields. This system integrates six-sided dynamic scanning and high-speed sorting (68-chute sorting) technologies to achieve automatic measurement, weighing, scanning, and intelligent sorting of packages, significantly improving logistics processing efficiency.

Whole Line Speed	3,000pcs/h
Product Size Range	500*500&500 mm(Max)
Product Size Range	1001505 mm(Min)
Software Connect Port	API
Wheel Sorter	49 set (customized)

Core Components

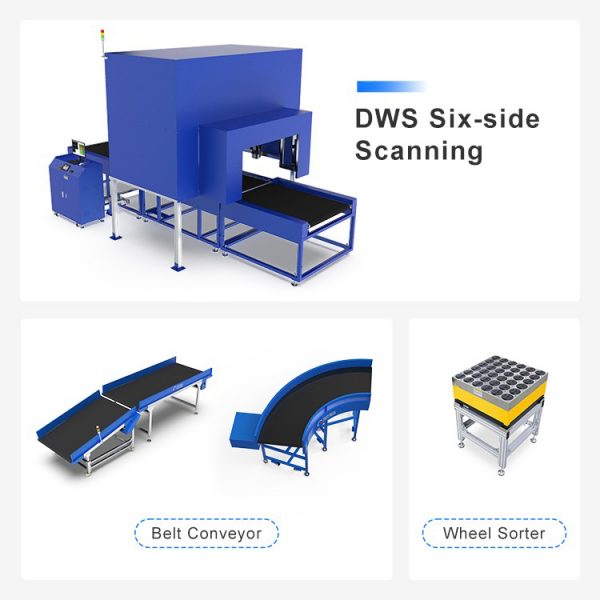

Dynamic 6-Side Scanning DWS System

High-Precision Scanning: Utilizes multi-angle industrial cameras (top, side, bottom) for full 6-side automatic scanning, supporting barcode, QR code, and OCR text recognition with ≥99.5% accuracy.

Volume Measurement: 3D laser/TOF cameras measure length, width, and height in real-time (±1mm accuracy), automatically calculating volumetric weight.

Dynamic Weighing: Embedded weighing module (±5g accuracy), synchronized with scanning, achieving speeds up to 5,000 parcels/hour.

Data Integration: Real-time transmission of weight, volume, and barcode data to WMS/TMS systems, with automatic order verification.

68-Chute Sorting System

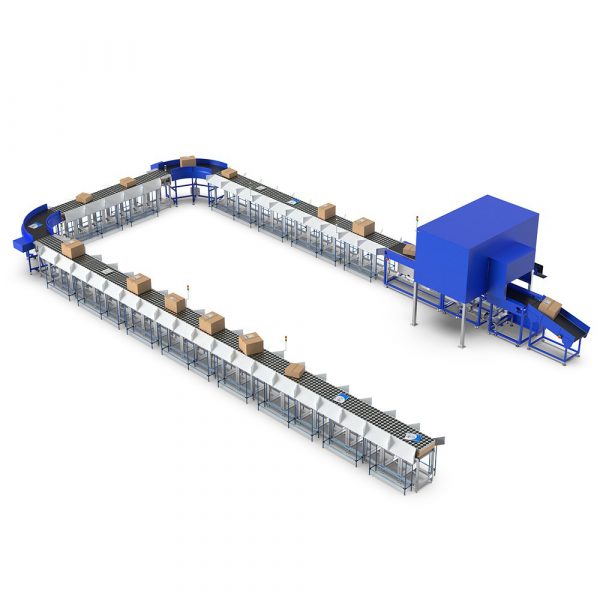

Modular Design: Supports linear/U-shaped sorting layouts, with expandable chute capacity (customizable as needed).

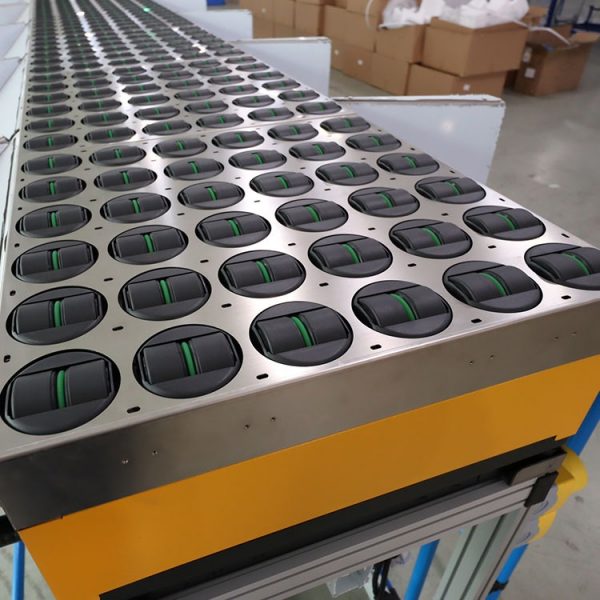

Sorting Method: Uses wheel diverters, achieving sorting efficiency ≥3,000 parcels/hour.

Intelligent Routing: PLC control system dynamically assigns chutes based on DWS data, allowing priority routing (e.g., urgent parcels).

Software Control System

Sorting Logic Engine: Automatically directs parcels to chutes based on destination, weight range, courier company, etc., with AI-driven optimization.

Exception Handling: Automatically flags unrecognized parcels for manual intervention or recirculation.

Visual Monitoring: Real-time display of sorting status, congestion alerts, and efficiency metrics (e.g., chute utilization, mis-sort rate).

Workflow

High Throughput: Seamless DWS-sorting integration, processing 4,000–5,000 parcels/hour, minimizing manual intervention.

Precision Sorting: Multi-side scanning reduces missed reads, achieving a mis-sort rate of <0.1%.

Space Optimization: Compact chute layout (customizable double-layer design) saves over 30% floor space.

Data-Driven: Provides sorting analytics (e.g., peak efficiency, chute load) for capacity planning.

Applicable Scenarios

E-Commerce Warehousing: Sorting multi-SKU, small-item orders.

Express Transit Hubs: Distributing parcels by courier brand and destination.

Cross-Border Logistics: Auto-sorting domestic/international shipments and customs types (e.g., DDU/DDP).
